20’inch jumbo whole room pre-filtration 2 stage big flow rate water filter

Pre-filtration

Home Product Center Ro water filter Pre-filtration

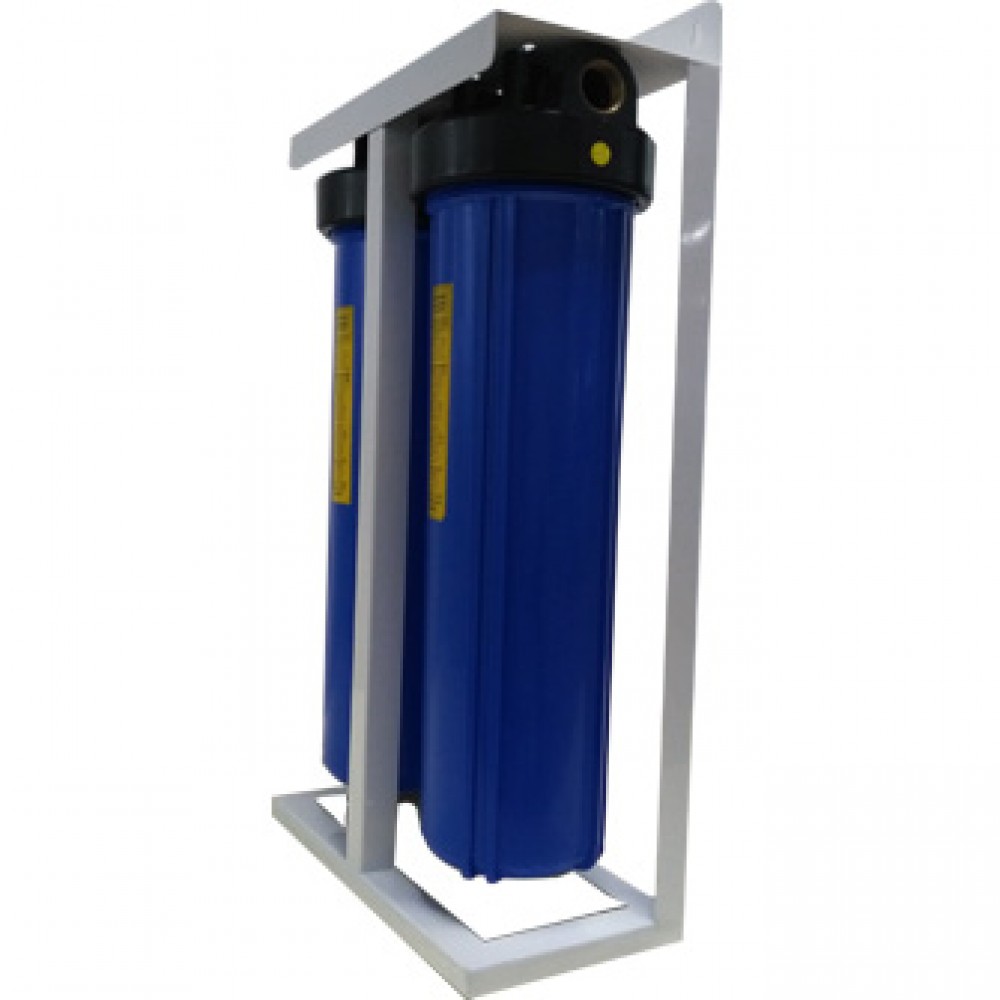

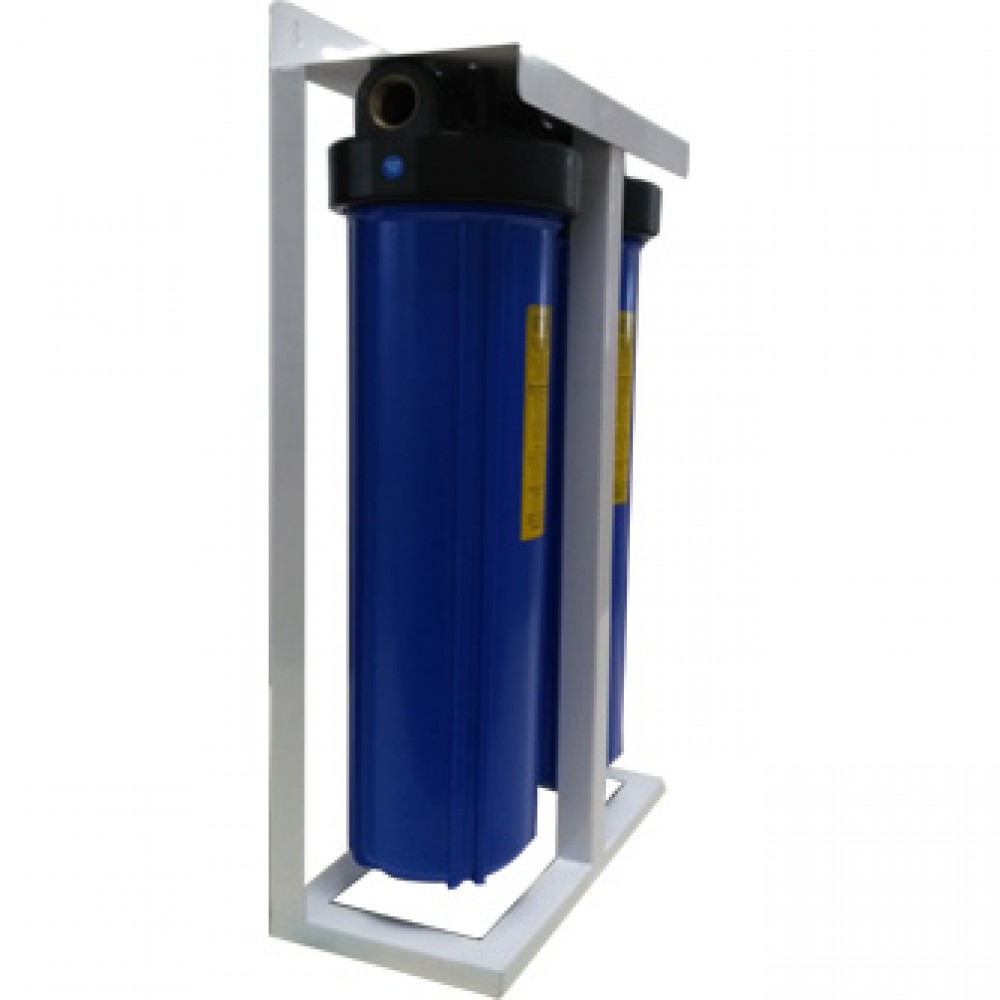

20’inch jumbo whole room pre-filtration 2 stage big flow rate water filter

20’inch jumbo whole room pre-filtration 2 stage big flow rate water filter
* 2 stage whole room pre-water filter
*2 stages:20"PP+20"CTO
*Without water meter

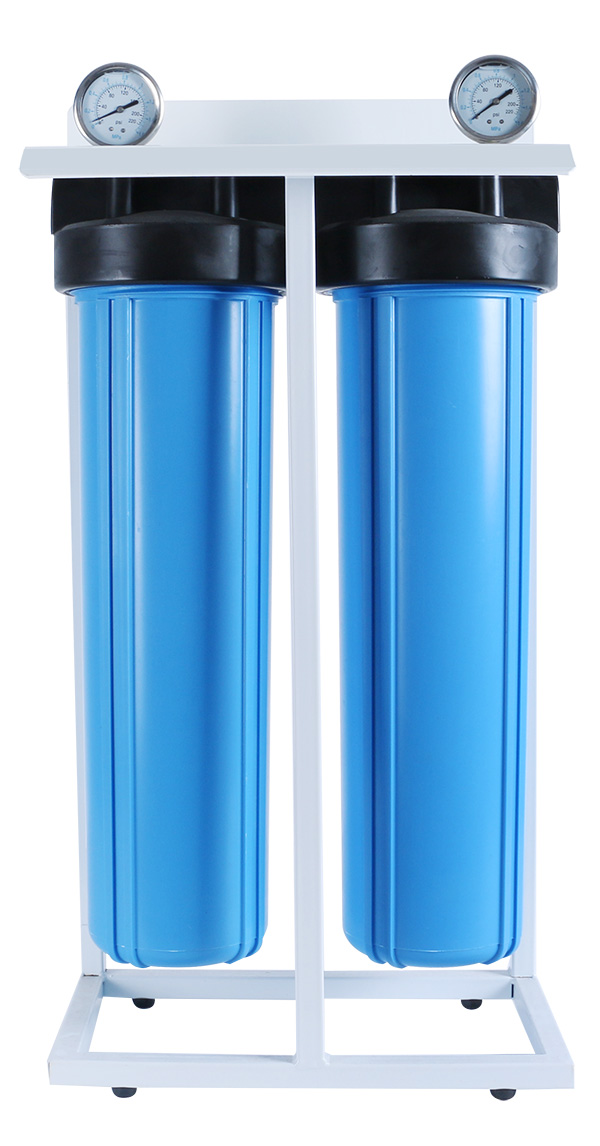

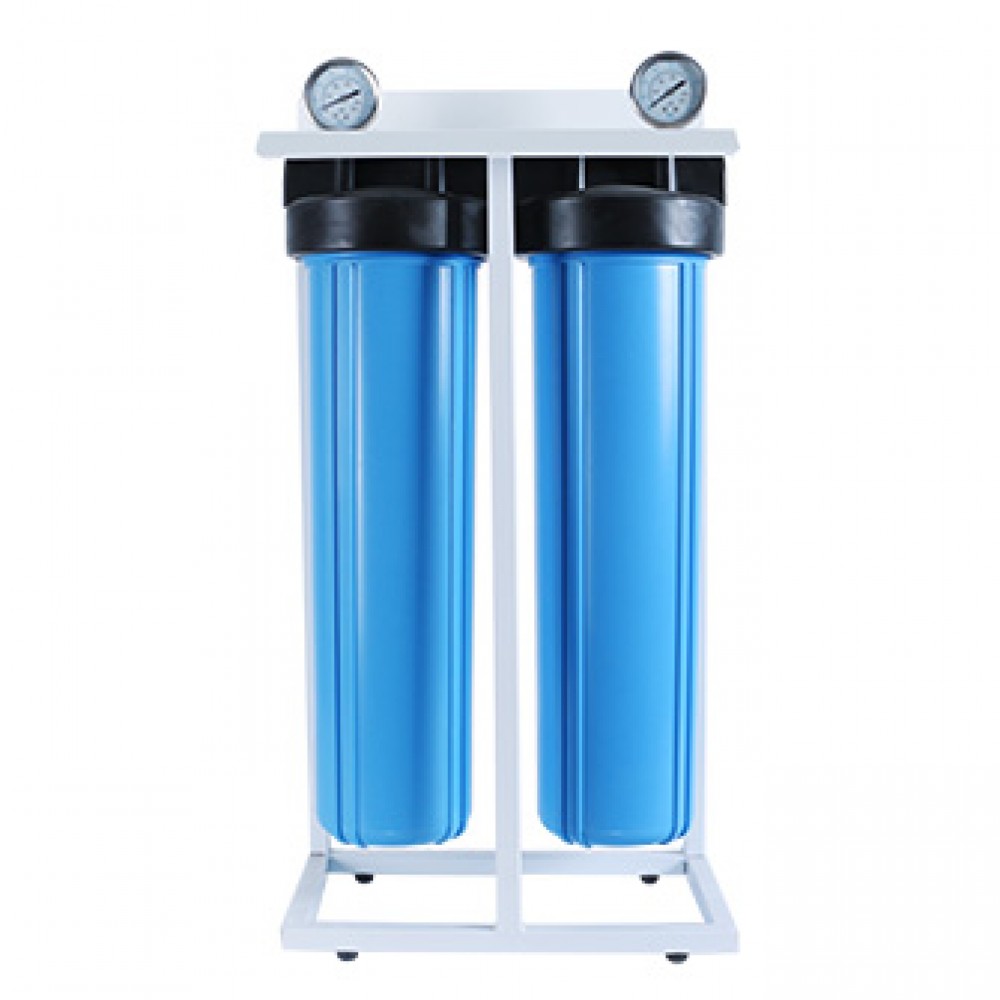

*With 2 water pressure
*Packing Size:39*39*70cm

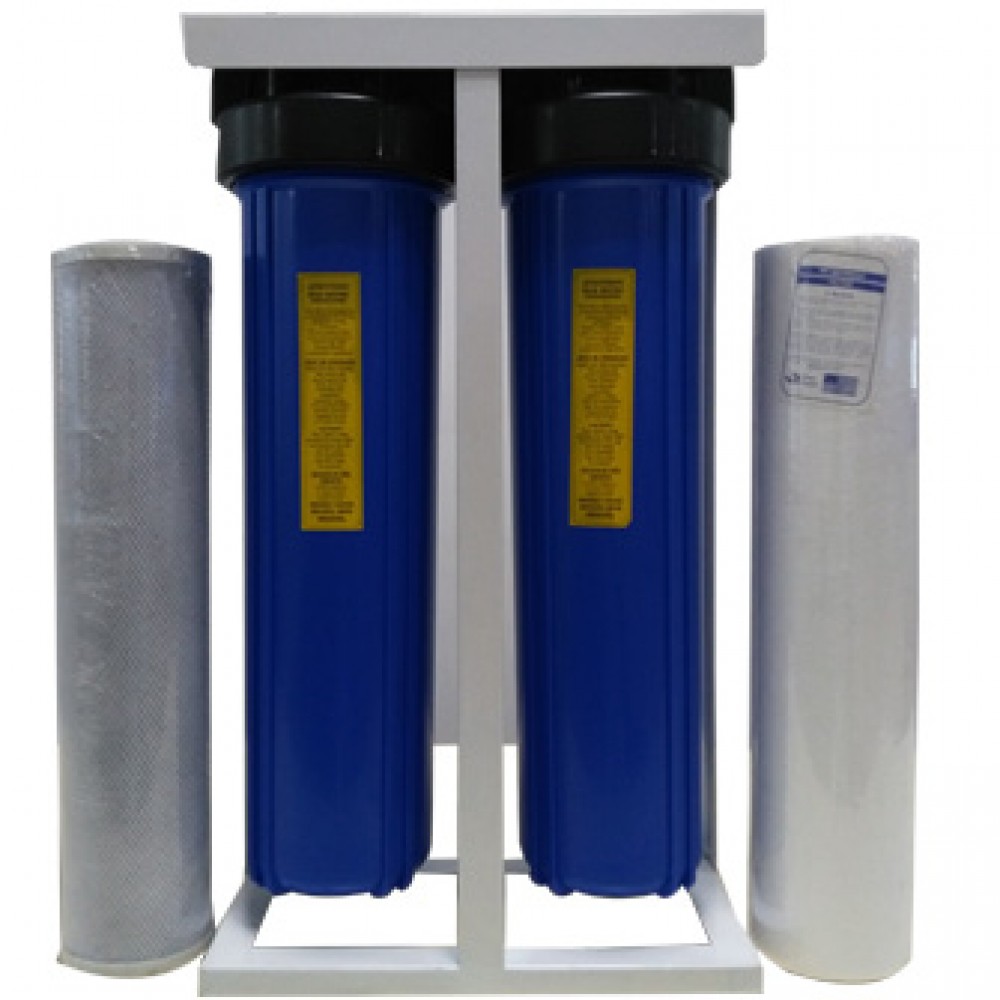

20’Dual Full Flow Housing System, blue, 1’(female) BSP ports,
assembled complete with spanner
4.5 x 20’Pleated 5 mic cartridge
4.5 x 20’Carbon Block 5 micron
Filter System Features
Whole House Water Filtration
High Flow Rate –No Water Pressure Drop





Description

Each stage of the filter cartridge's function of direct drinking water purification machines
*Fisrt stage is 1um PP Sediment Filter:To Remove Sand,Dirt,Worn and Rust Particles
*Thrist stage is CTO-Granular Activated Carbon Filter:To Absorb the Chlorine,VOC Organic Matter,Odor,Smell Turbidity,
Power consumption : None. Unit works off water mains pressure.
Main Connection Inlet : 15 or 22 mm Imperial sizes also catered for
Max Pressure : 6.5 Bar (UK mains is normally 2.5 Bar)
Max Temperature : 52 Degrees Centigrade
Filter Life : Approx 8 to 12 months (dependent on in coming water quality)
Size: The dimensions are 70cm tall x 35 cm wide
Suitable for : All homes - including those with cold feed electric showers & Combi Boilers
Warranty: The unit comes with a 12 months warranty as standard and our 30 day Money Back Guarantee
Installation: The following standard plumbing parts are required in addition to the system provided to install the
system in most houses:
3 x 15mm Stop Cocks
2 x 1.5" Reducers (compression reducing set 22x15)
15mm Copper Tubing (length depends on site, 3m typical and a number of elbow connectors)
2 x Compression Tee 15mm
2 x Straight Compression Coupling M/I 22x1"
