19mm Mushroom Head Waterproof Metal 3 pins Single Pole Single Throw/6 pins SPDT Emergency Stop Button Switch

Name: 19mm Mushroom Head Waterproof Metal 3 pins Single Pole Single Throw/6 pins SPDT Emergency Stop Button Switch
SKU: 276
Rating: 5 (1275 reviews)

Model No.:SW002

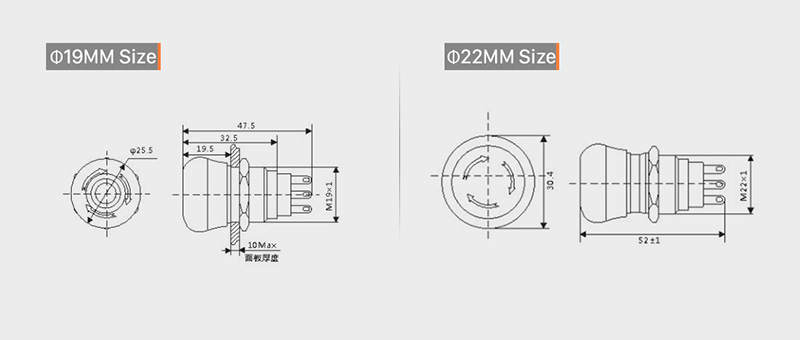

Diameter:Φ19MM/Φ22MM
Waterproof:IP66
Max.Current:5A
Max.Voltage:250VAC
Operation type:Latching
Contact configuration:1NO1NC;2NO2NC
Ambient Temperature:－30℃~+80℃
Pin terminal:3pins;6Pins
Contact Material:Silver
Operation Type:Push-Lock Turn-Resrt
The Front Shape:Ball
Crust materia:Stainless Steel/Nickel-plated brass

Add To Inquiry SEND INQUIRY

Description

19mm Mushroom Head Waterproof Metal 3pins Single Pole Single Throw/6pins SPDT Emergency Stop Button Switch
Diameter:Φ19MM/Φ22MM
Waterproof:IP66
Max.Current:5A
Max.Voltage:250VAC
Operation type:Latching
Contact configuration:1NO1NC;2NO2NC
Ambient Temperature:－30℃~+80℃
Pin terminal:3pins;6Pins
Contact Material:Silver
Operation Type:Push-Lock Turn-Resrt
The Front Shape:Ball
Crust materia:Stainless Steel/Nickel-plated brass
*Emergency Stop Switch
*Waterproof and dustproof grade up to IP66

*1NO1NC function,3pins;2N02NC function,6pins
