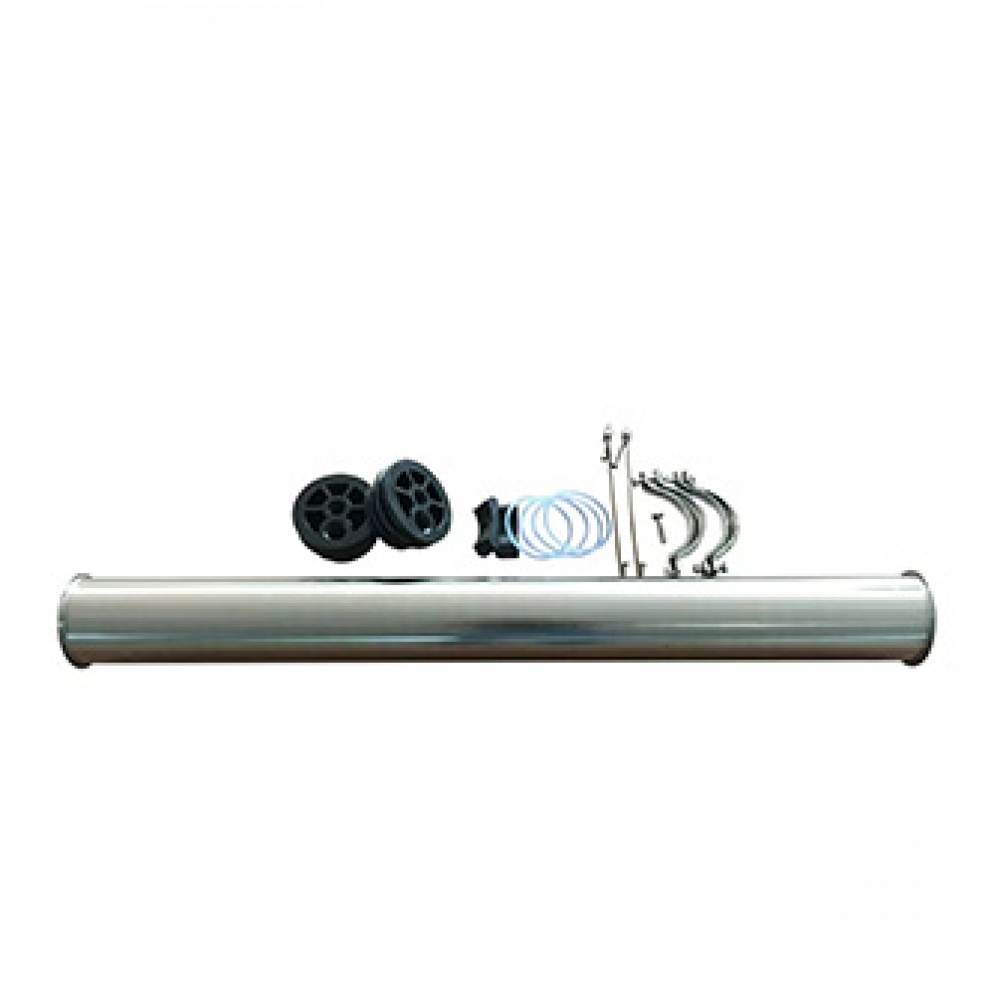

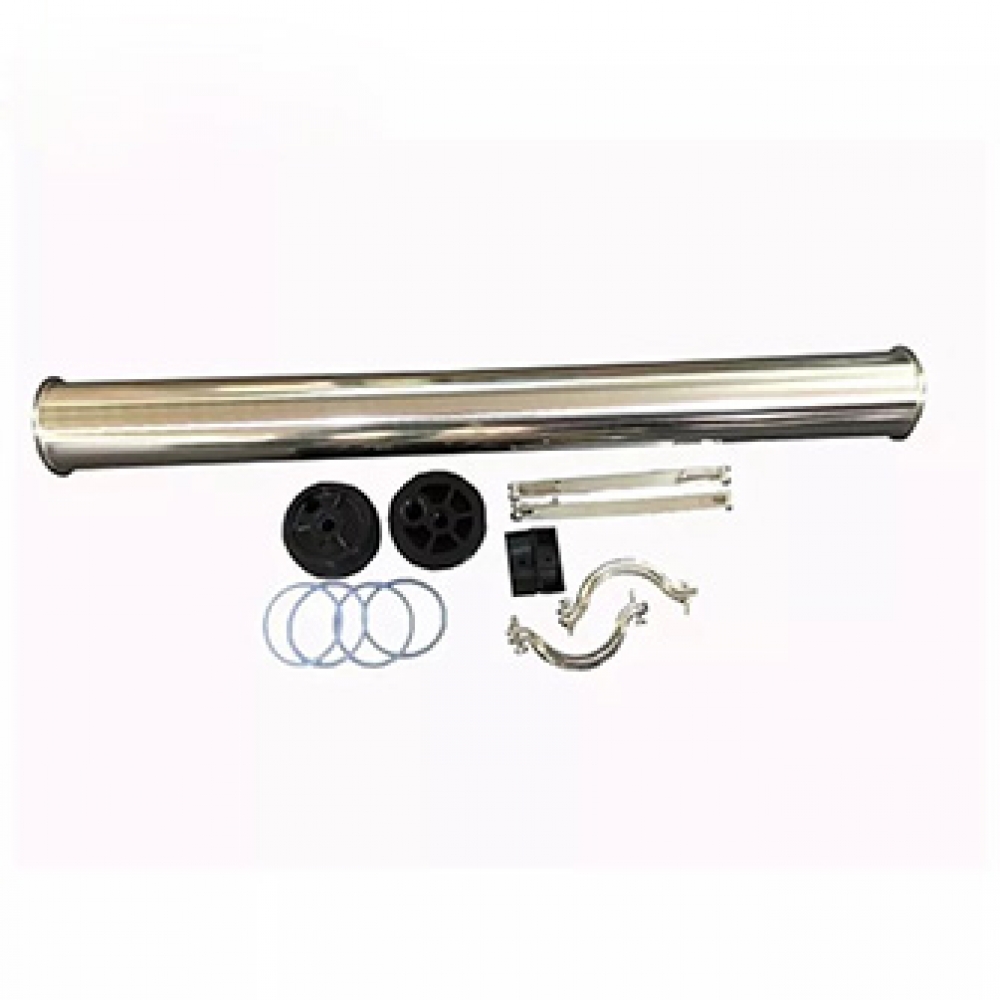

Stainless steel reverse osmosis 4040 membrane RO water filtration 8040 membrane housing

Stainless steel reverse osmosis 4040 membrane RO water filtration 8040 membrane housing

Quick Details
Model Number:4040 4080
Name:stainless steel ro membrane pressure housing
Material:stainless steel
Pressure:300/450/600/1000/1200psi
Size:4040 and longer
Connection:End port or side port

Description

Our products are used in food,beverage,pharmaceutical and chemical,power and electronics,metallurgy,petrochemical,seawater and brackish water desalination and other areas.
Model specification for referance:
SMH25/40(End Port/Side Port)
Material: Stainless Steel 304, #316L
Housing tube type: Seamed, Seamless
End cap material: ABS, Stainless steel
Max. working pressure: 300psi
Inlet port: 3/4"
Outlet port: 1/2"
Model: 2521, 2540, 4021, 4040, 4080, 40120, 40160
SMH80(End Port/Side Port)
Material: Stainless Steel 304, #316L
Housing tube type: Seamless
End cap material: Stainless Steel
Max. working pressure: 300psi
Inlet port: 1 1/2"
Outlet port: 1"
Model: 8040, 8080, 80120, 80160,80200 ...
Chemical feature:
1.with the original epoxy resign as the basic material,it enhances the ablity of anti-corrosion and anti-aging.
2.with non-alkaili twistless fiber glass garn as reinforcing material,it strengthens the ability of anti-crushing,anti-fatigue and anti-deformation.
3.with advanced fomula processing,it boosts the product`s ability of thermostability and anticorrosive.
The product's quanlity:
1.the blasting testing is done with more than 6 time of designed pressure.
2.100,000 times fatigue test at maximum operating temperatures.
3.100% product have to be passed by four levels tests of high pressure and low pressure between 0.4~1.2 times



More details please contact with me by Email:sam@ropurifierfilter.com

Mobile/Whatsapp:008613711593642
