PC10E Single low pressure controls pressure switch for RO System Plant

Name: PC10E Single low pressure controls pressure switch for RO System Plant
SKU: 170
Rating: 5 (1169 reviews)

Quick Details

Model Number:PC10E

Max. Current:24A, 16A

Max. Voltage:110V, 220V

Max. Working Pressure:1.7MPa

Product Name:Single pressure controls / pressure switch

Adjust pressure range:-0.5~6bar(-7~86 psi)

Differentail:1~4 bar(14~56psi)

Reset:Mannul-reset pressure switch

Pressure Range:Low pressure

Adjust Range:-0.05~0.6 MPa

Differential:Fixed ≤0.2 MPa

Connection:1/4" Flare nut 7/16"-20UNF

Ambient temperature:-40~+65 ℃

Medium temperature:-40~+120℃

SINGLE PRESSURE CONTROLS / PRESSURE SWITCHES PC10E

Description

PC10E Single low pressure controls pressure switch for RO System Plant

1. low pressure and high pressure

2. with small volume, beautiful appearance

3. It is more suitable for some refrigeration unit with compact structure, which make the refrigeration unit look more concise and beautiful

4. it can be comparable to the similar products abroad.

Technical Data

1. Mannul-reset pressure control

2. Switch contact capacity:A.C. 220V 16A A.C.110V 24A

3. Medium:Non-corrosive gas,water and oil

4. Ambient temperature:-40~+65 °C

5. Medium temperature:-40~+120°C

6. Electrical ratings: 220V A.C. 16A,

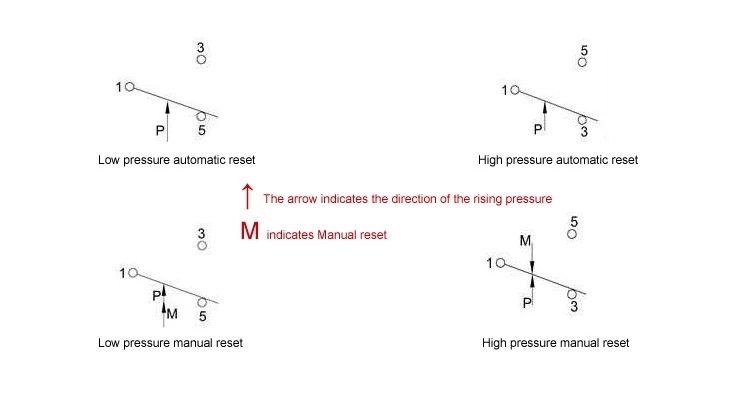

Contact form and function

The switch contact form is SPDT

Low pressure: 1--5 is normal closed

High pressure: 1--3 is normal closed
